Product Description：

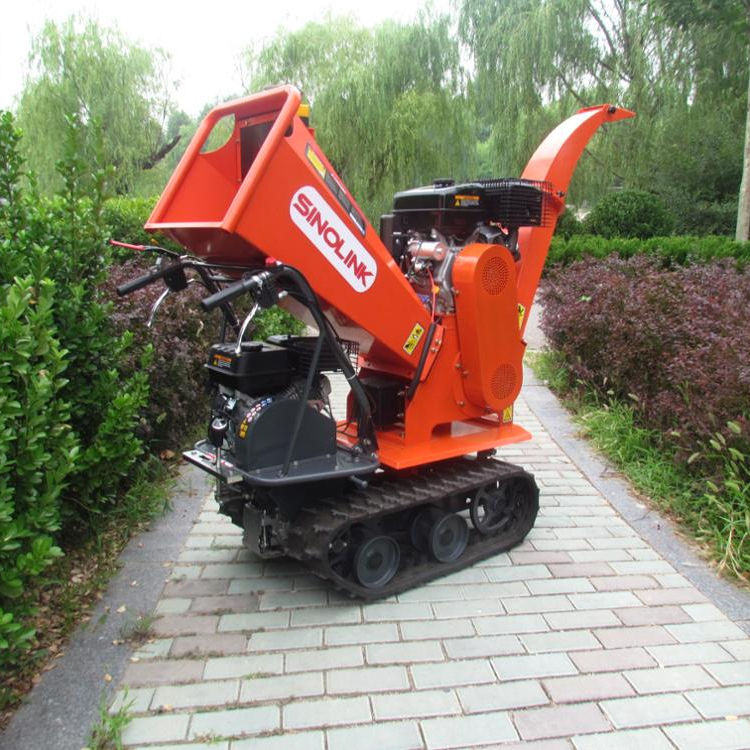

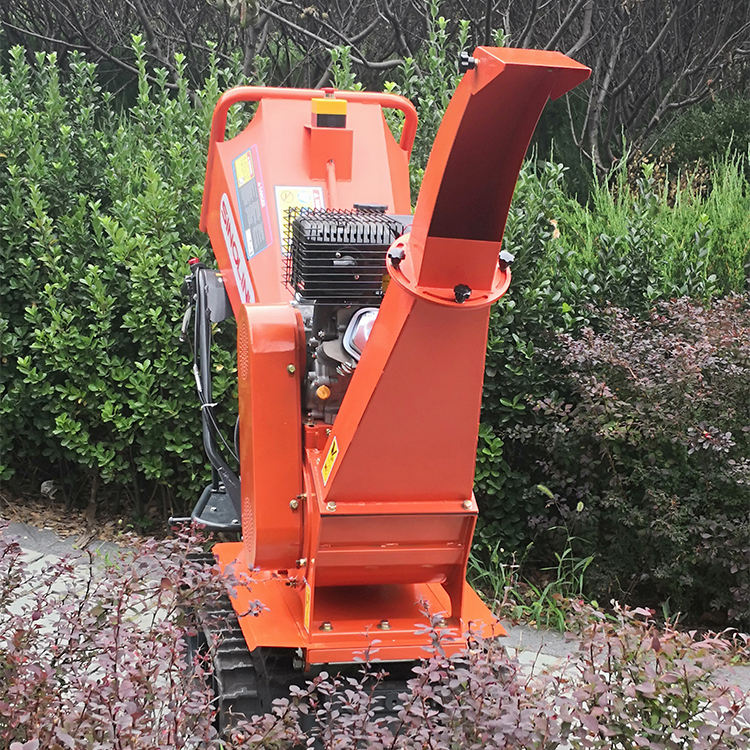

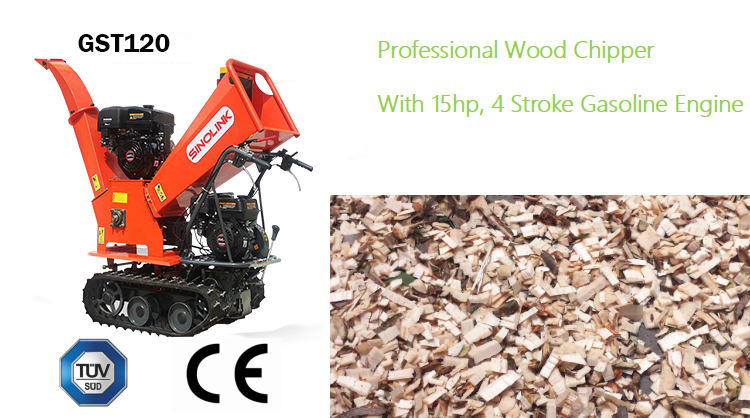

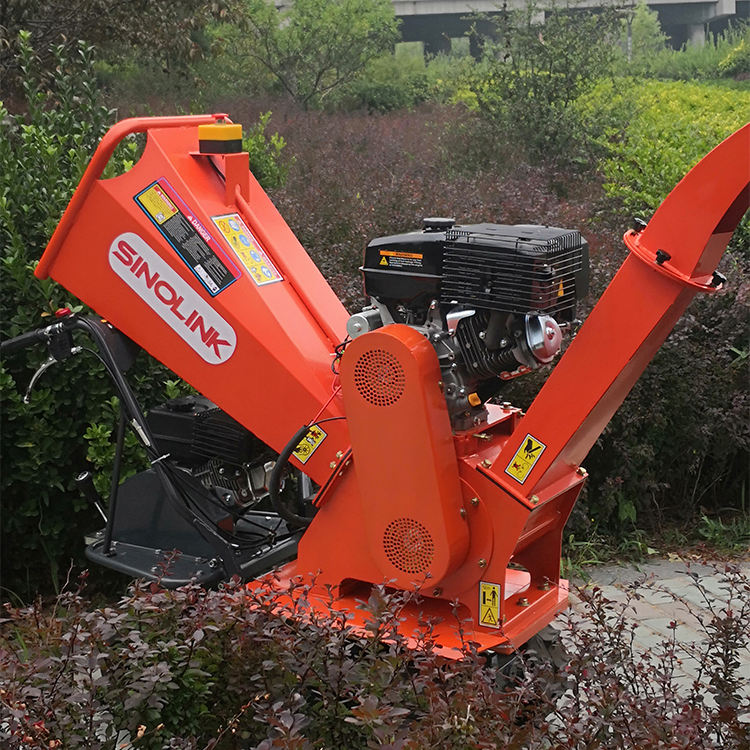

ATV Wood Chipper Shredder Machine
THE NEW SINOLINK MODEL GST-120 IS A DRUM CHIPPER WITH TRACK SYSTEM, COMPACT MACHINE FOR CHIPPING BRANCHES UP TO 10 CM IN DIAMETER, ORGANIC PRODUCTS BOTH DRY AND WET. The new chipper SINOLINK GST-120 is equipped with a caterpillar tractor base. With this new accessory customers and contractors will be able to move on any terrain and load and unload the wood chipper from their vans in total autonomy. Aimed at business users, the machine with the most ‘high productivity in its class, with two large rotor blades reversible steel long-term before their sharpening. Thanks to the design of the rotor, branches, twigs and cuttings are dragged automatically inside without the aid of driving rollers. The centrifugal force created by the rotor ejects the shredded material in fine chips, projecting out from the exhaust adjustable in height and throwing it about 3/5 mt (depending on the material), allowing easy loading in a container or trailer. Driven by a combustion engine with a V-belt drive which makes it very resilient. Large hopper sloping ideal for loading large volumes of prunings without excessive cuts, saving time and money. The version with increased engine also can chip diameters of solid wood into 12 cm in diameter. The compact dimensions (76 cm wide) allow its use even in tight areas or terraces and its load on small van

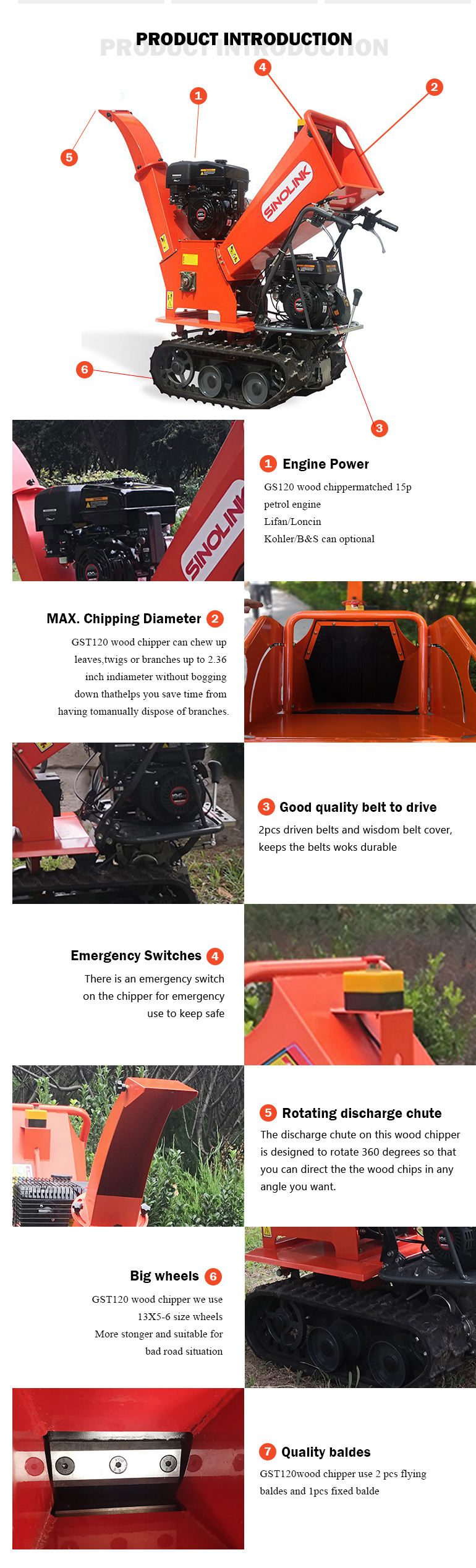

Main Features
1) Gasoline/diesel/electric motor engine optional
2) 2 pcs 2000-2200RPM Good quality Blades with 8-9CBM/hour High efficiency
3) Produced by our own factory, So the quality and prices are best.
|
MODEL NUMBER
|
GST-120 Tracked gasoline wood chipper
|
|
ENGINE MODEL
|
Gasoline(Petrol) Motor
|
|

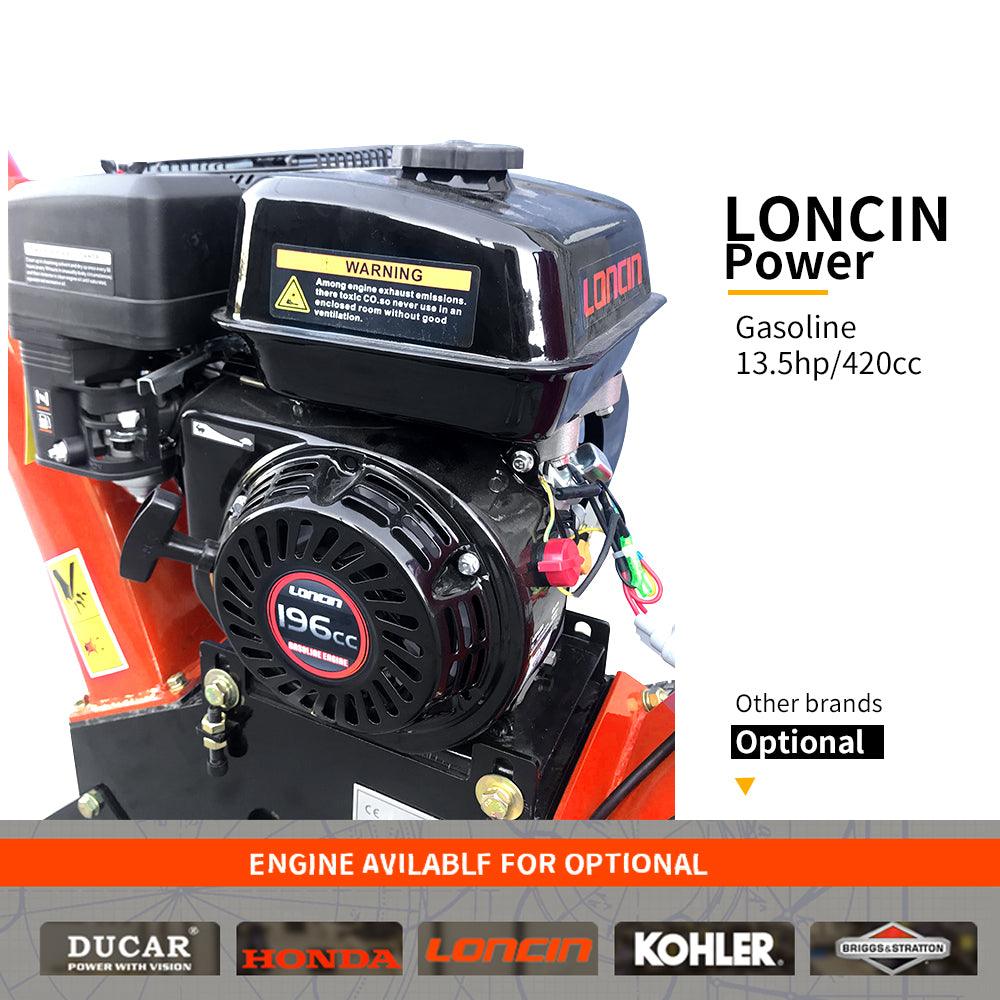

ENGINE BRAND
|
15HP LONCIN(Gas.)
|
|
CHIPPING EFFICIENCY
|
8-9CBM/Hour
|
|
MAX. CHIPPING DIAMETER
|
120mm x 280mm
|
|
BLADES SIZE/QUANTITY
|
300mm X 55mmX55mm/ 2 pieces
|
|
ROLLER MAX. RPM
|
2000-2200rpm
|
|
TRANSMISSION
|
3F+1R
|
|
TRACK WIDTH
|
180MM
|
|
ATV TIRES
|
16×8.0-7
|
|
OVERALL L*H*W
|
1800* 1150mm*1680mm
|
|

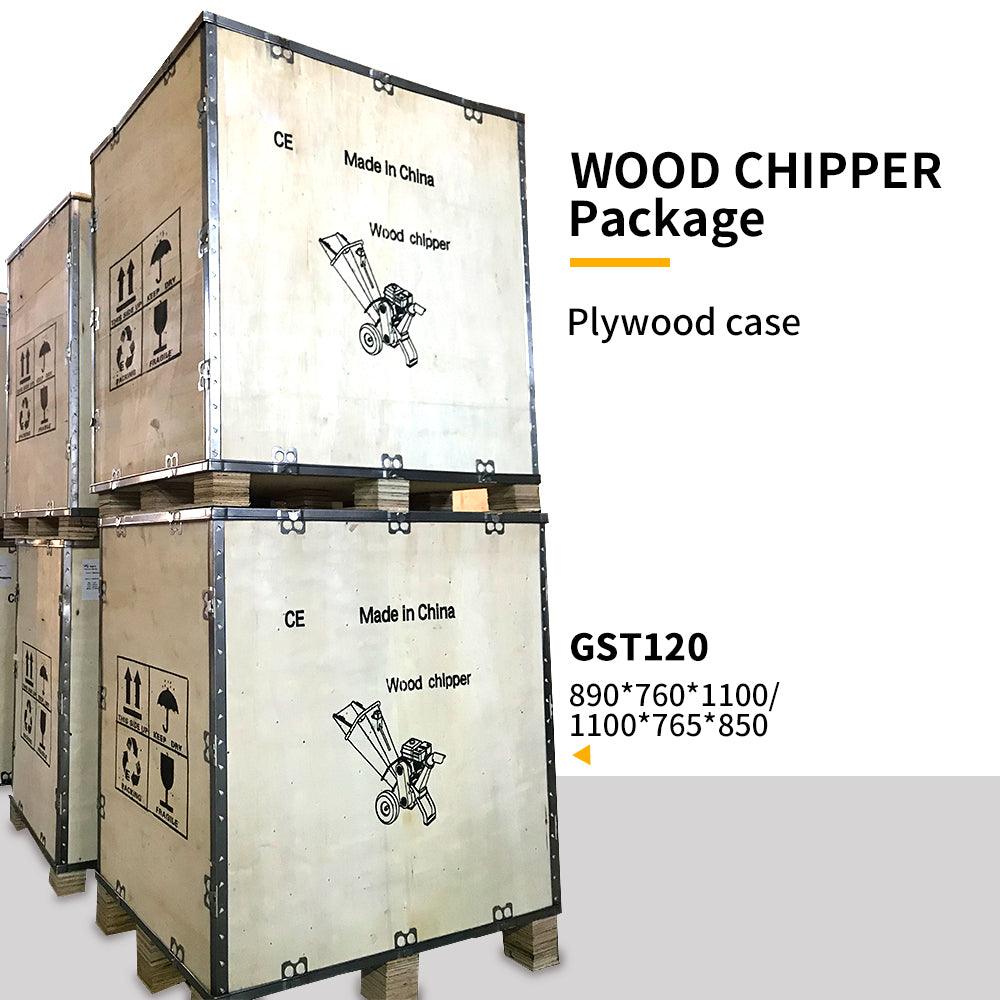

PACKING SIZE/UNIT
|
890*760*1100mm
|
|
WARRANTY
|
1 Year
|
