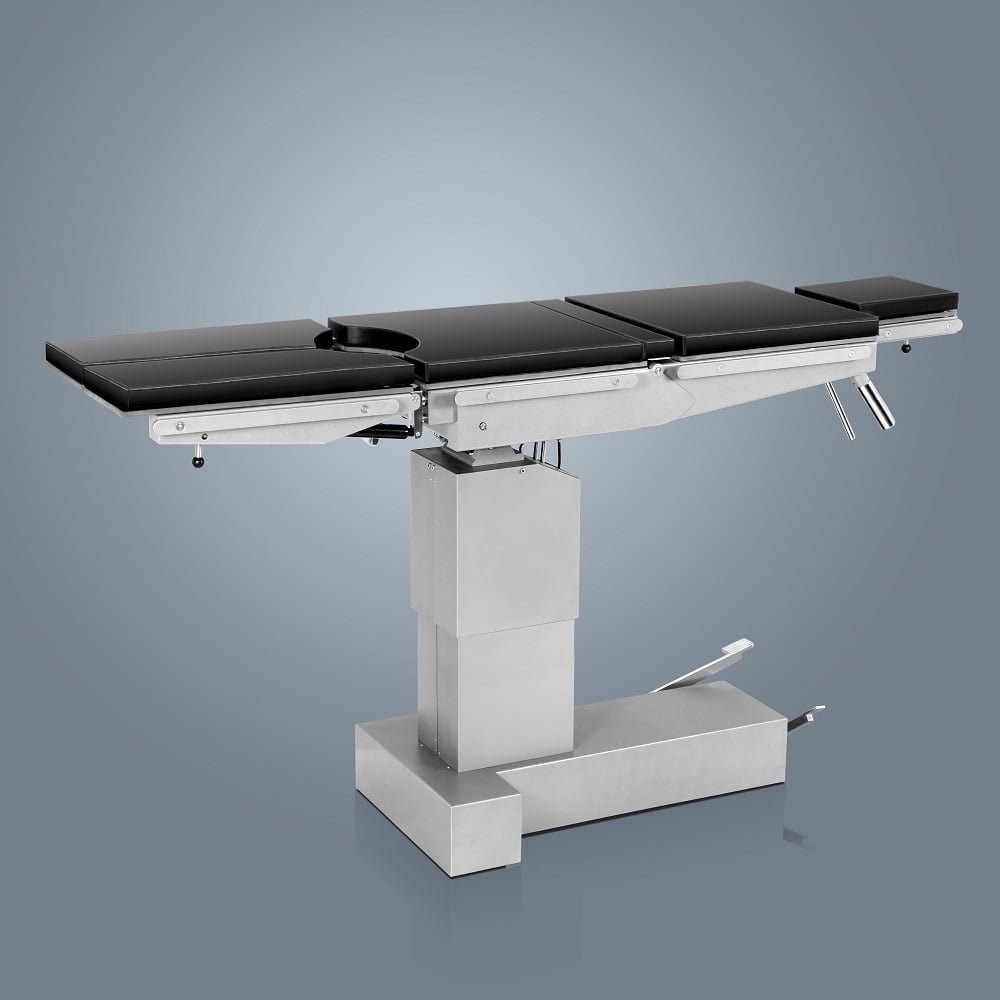

The ToronSurge3000 Mechanical Operating Table is designed for a wide range of surgical procedures, including thoracic, abdominal, ENT, obstetric, gynecological, urological, and orthopedic surgeries.
Constructed from stainless steel, including the frame, column, and base, the table is easy to clean and resistant to corrosion. The hydraulic system uses a pedal-operated oil pump for smooth and reliable height adjustments, while all other movements are controlled through mechanical gears. It features a foldable, abductable, and detachable leg plate for easy adjustments, and it utilizes a T-shaped base for added stability.
Key Features:
- 360° Rotation: The table can rotate 360° (optional), allowing surgeons to adjust the angle based on their position, providing greater flexibility and space during surgery.

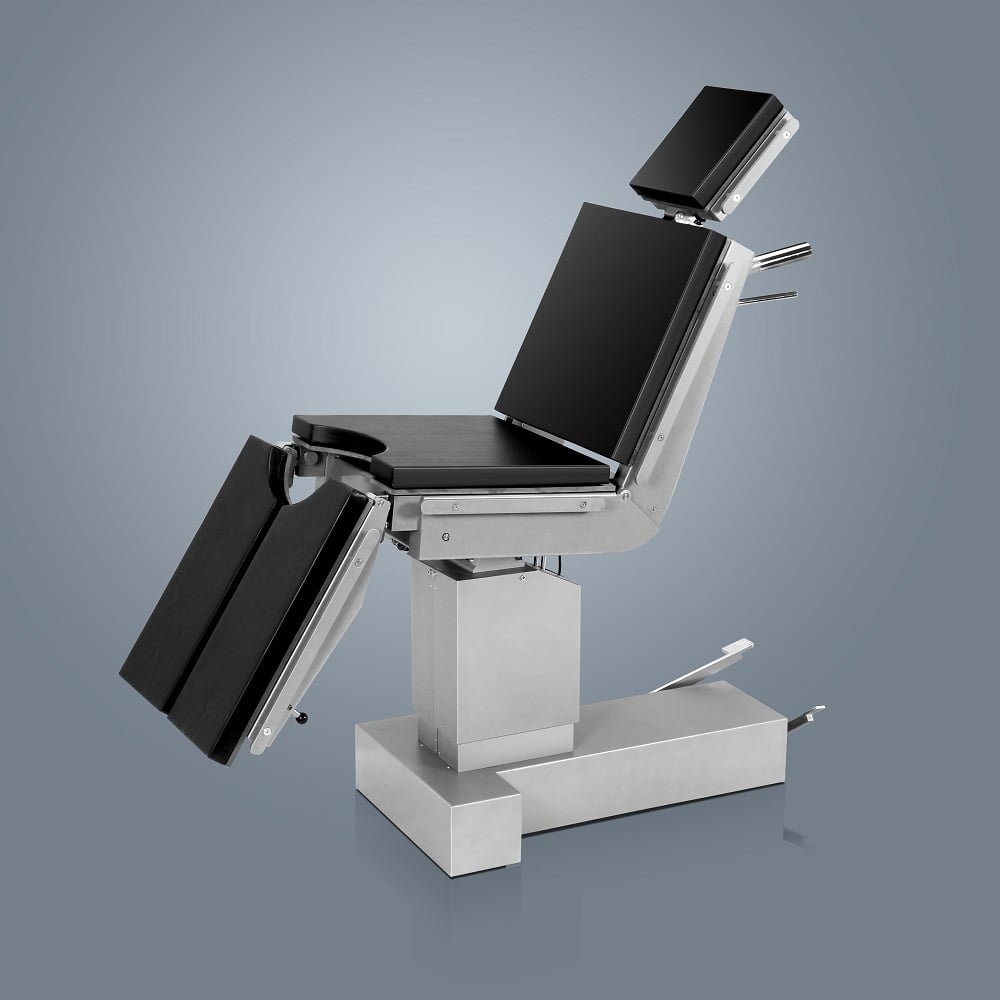

- Quick Flex Positioning: With a single-handle operation, the table can achieve a 200° flexion, effectively replacing the need for a lumbar bridge.
- Double-Layer Tabletop: The table is equipped with a double-layer composite tabletop with a low X-ray absorption coefficient, ensuring high-definition imaging for X-ray procedures
-
Stainless Steel Construction: Made from 304 stainless steel, the frame, base, lifting column, and main transmission structure are highly durable, corrosion-resistant, and easy to clean, ensuring long-term rust-free performance
-
Hydraulic and Manual Adjustments: The table’s height is adjusted via a smooth and reliable pedal-operated oil pump, while all other movements are managed through mechanical gear systems.
Technical specifications:
- Length and Width: 2020x 500mm
- Elevation( Up and Down): 1010mm/760mm
- Head Plate (Up and Down): 45°/70°
- Back Plate (Up and Down): 75°/ 15°
- Leg Plate (Up /Down/ Outward): 15°/ 90°/ 90°
- Trendelenburg/Reverse Trendelenburg: 25°/ 25°
- Lateral Tilt (Left and Right): 20°/ 20°
- Kidney Bridge Elevation: ≥110mm
- Mattress: Memory Mattress
- Main Material: 304 Stainless Steel
- Maximum Load Capacity: 200 Kg
