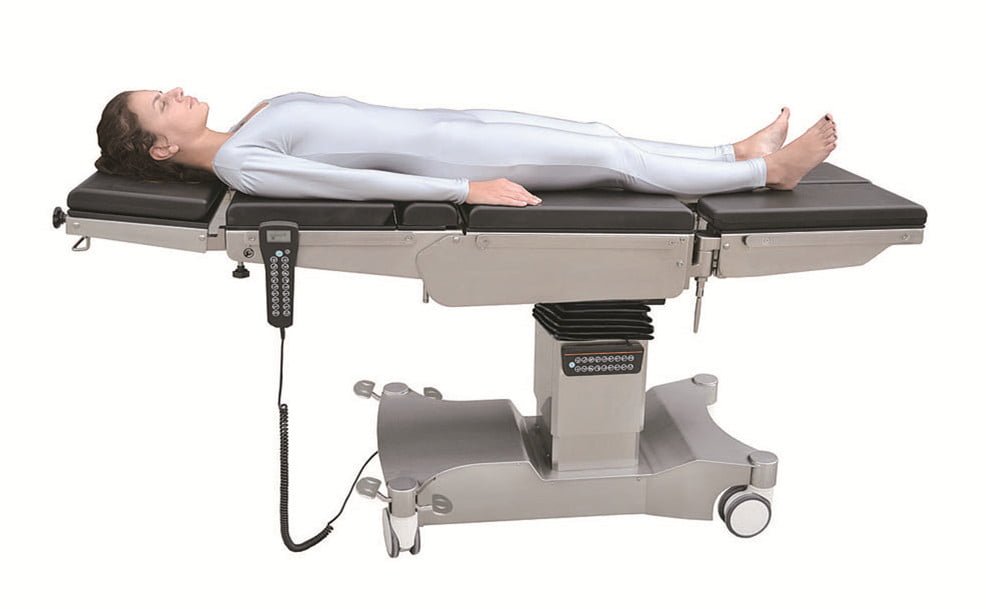

ToronSurge1000+ Electro-Mechanical Operating Table is constructed with a full 304 stainless steel bed and column, ensuring easy cleaning and resistance to contamination.
The table surface is divided into five sections: the head, back, buttocks, and two detachable leg sections. It features a 340mm translation capability,
providing excellent visibility for C-arm imaging during surgeries and compatibility with X-ray film cassettes.
The headboard includes a double-joint mechanism, while the legboard can be adjusted via a gas spring. The table is fitted with German-made silent casters and offers optional features like one-button reset, buckling, and anti-buckling functions.
This multifunctional electric operating table is designed for a wide range of surgeries, including abdominal, obstetric, gynecological, ENT, urological, anorectal, and orthopedic procedures.

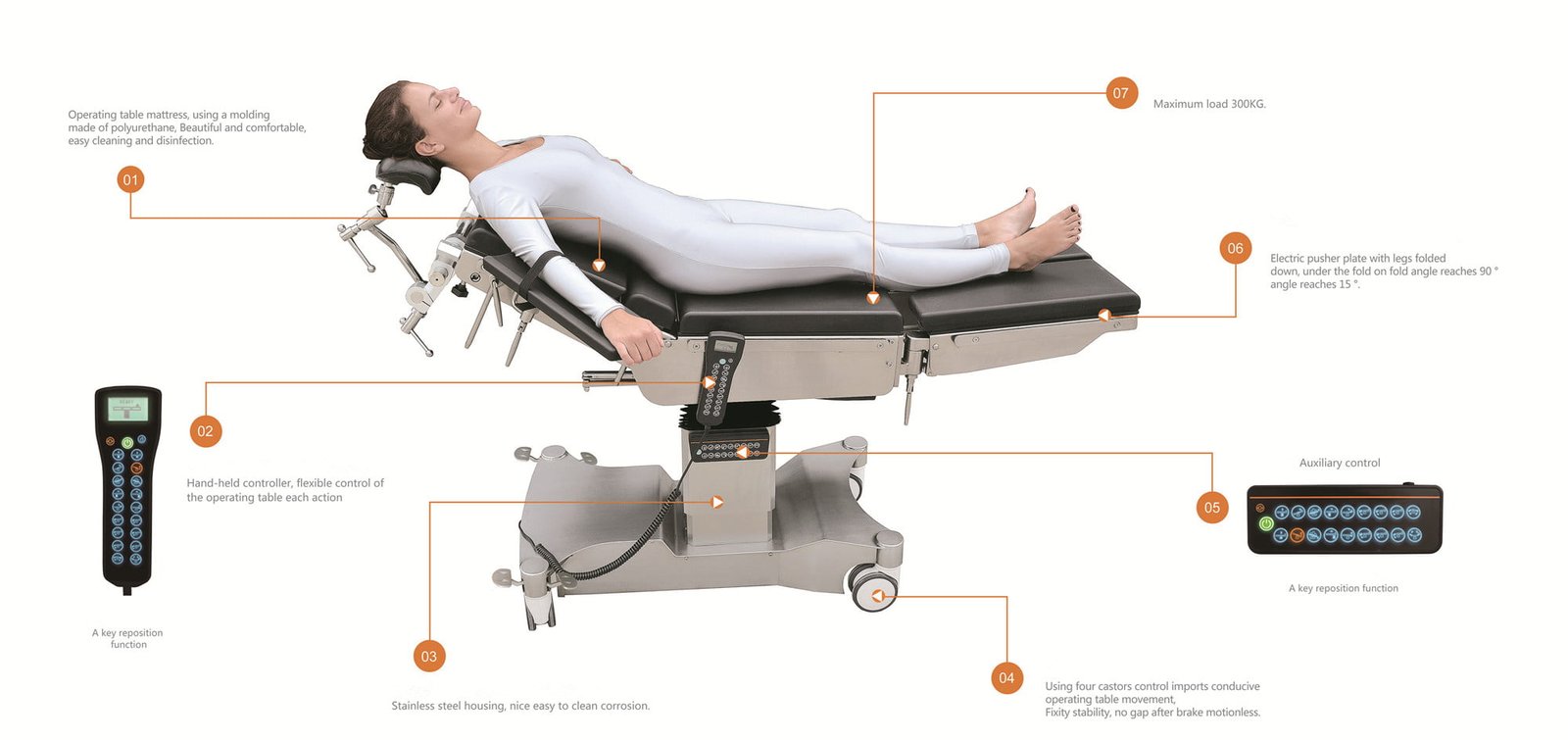

Key Features:
Double-Joint Head Plate: The ToronSurge1000+ allows for easy adjustment of the headboard height, providing the patient with a comfortable head position during surgeries that require different orientations.
Adjustable Leg Plate (Gas Spring or Electric Control): The leg plate can be operated using a gas spring for manual adjustment or upgraded to electric control for added convenience.
Optional Dual Control System: The table offers dual control through a hand controller and an optional panel, ensuring safe operation during surgery.
Large, Silent Casters: Equipped with high-quality, wear-resistant German TENTE casters, the table provides smooth and silent mobility in the operating room.
Built-In Rechargeable Battery: It is powered by a high-performance rechargeable battery, supporting up to 50 surgeries on a single charge. Additionally, an AC power supply ensures continuous electrical power for maximum safety.
Additional Optional Features: Optional features include one-button reset, positive flexion, and reverse flexion functions, allowing for enhanced versatility and customization in various surgical procedures.
Specification:
- Length and Width: 2100 x 550mm
- Elevation( Up and Down): 1000mm/700mm Head Plate (Up and Down): 45° 90°
- Back Plate (Up and Down): 90°/ 17°
- Leg Plate (Up /Down/ Outward): 15°/ 90°/ 90° Trendelenburg/Reverse
- Trendelenburg: 25°/ 25° Lateral Tilt (Left and Right): 15°/ 15°
- Kidney Bridge Elevation: ≥110mm
- Horizontal Sliding: 345mm
- Flex/ Reflex: Combination Operation
- X-ray Board: Optional
- Control Panel: Standard
- Voltage: 220V/110V
- Frequency: 50Hz / 60Hz
- Power: 1.0 KW
- Battery: Yes
- Mattress: Memory Mattress
- Main Material: 304 Stainless Steel
- Maximum Load Capacity: 200 Kg
