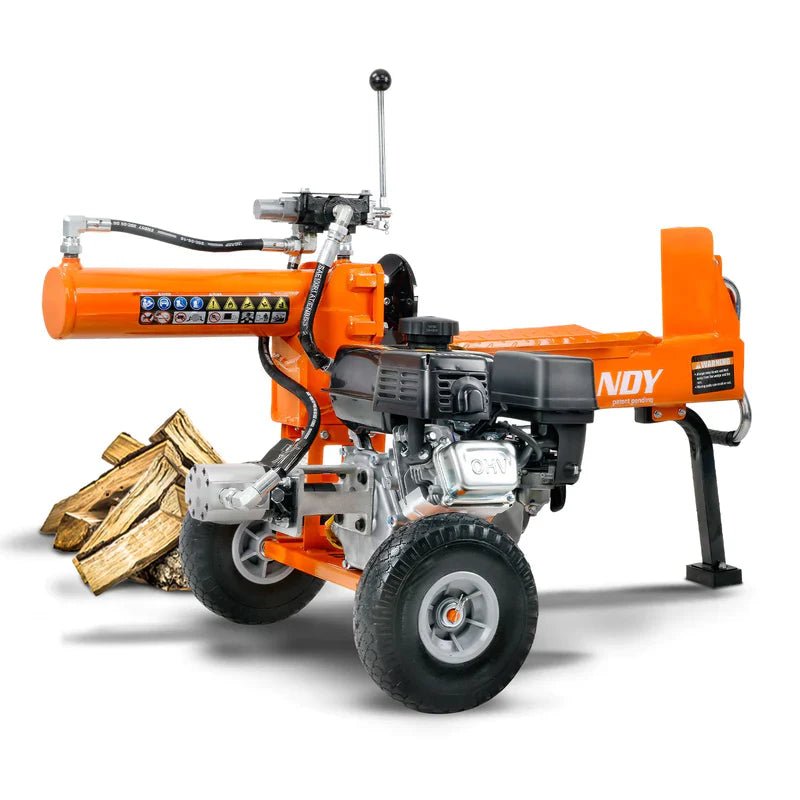

Super Handy 20 Ton Log Splitter – Free Shipping!

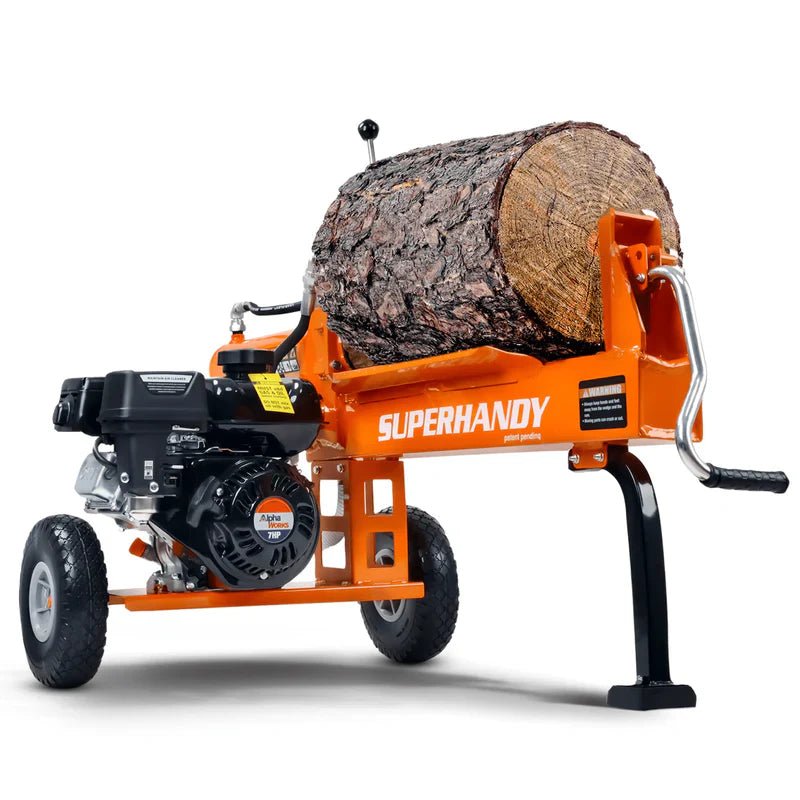

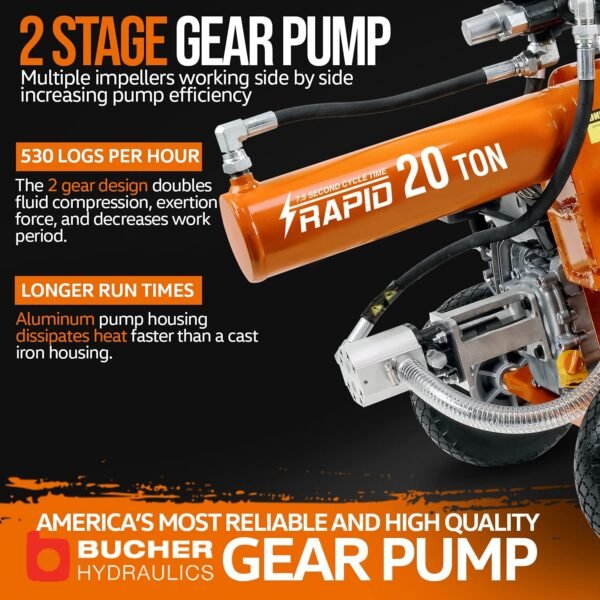

This log splitter is perfect for the average home owner that is looking for performance and value. Built with a heavy duty 7HP gas motor, powering our 20-ton rated system, utilizes the highly ultra reliable and trusted 2-stage Bucher hydraulic gear pump. Combined with a hands free auto return system that easily splits logs up to 20.5″ inches in length and up to on average 16″ inches in diameter.

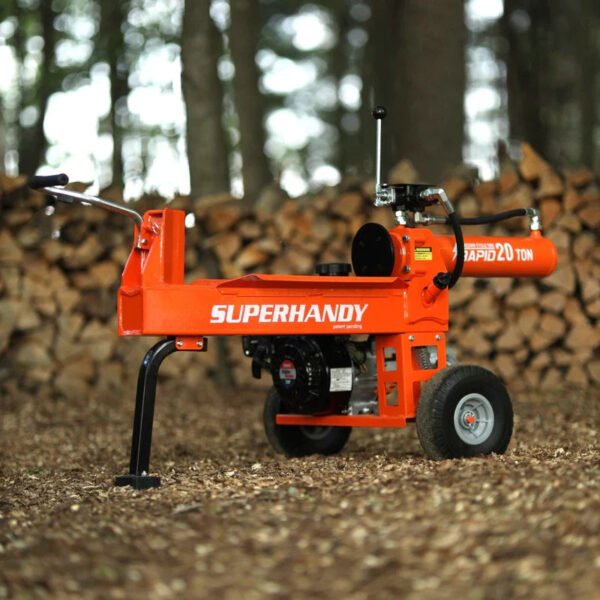

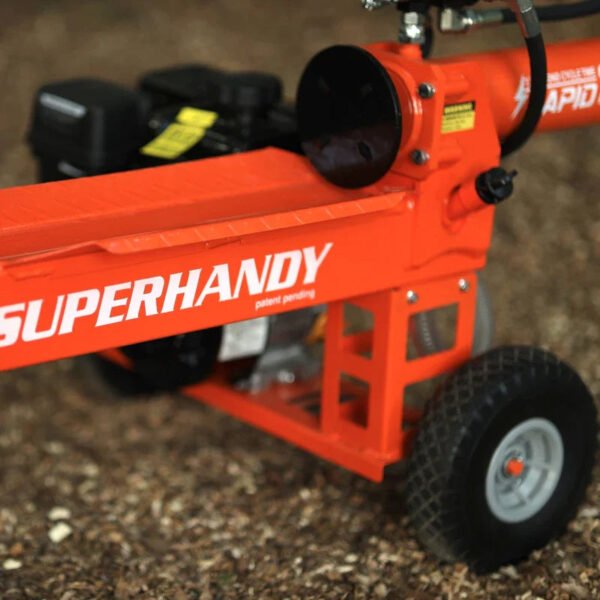

The lightweight horizontal full beam and steel wedge log splitter design is built to be portable with fast and easy set up for anywhere. Complete with 10” inch wheels, allowing for smooth maneuvering for easy transportation from site to site (Not road towable).
- SPECS – Built with a heavy-duty 7HP gas engine, powering our 20-ton rated system, utilizes the highly ultra reliable and trusted 2-Stage Bucher Hydraulic Gear Pump. With Rapid Auto Return that easily splits logs up to 20″ inches in length and up to 16″ inches in diameter; All weighing 130lbs
- PORTABLE DESIGN – Our lightweight horizontal full beam and steel wedge log splitter design is built to be portable with fast and easy set up for anywhere nature takes you; Complete with 10” inch Sturdy transport wheels, allowing for smooth maneuvering for easy transportation from site to site

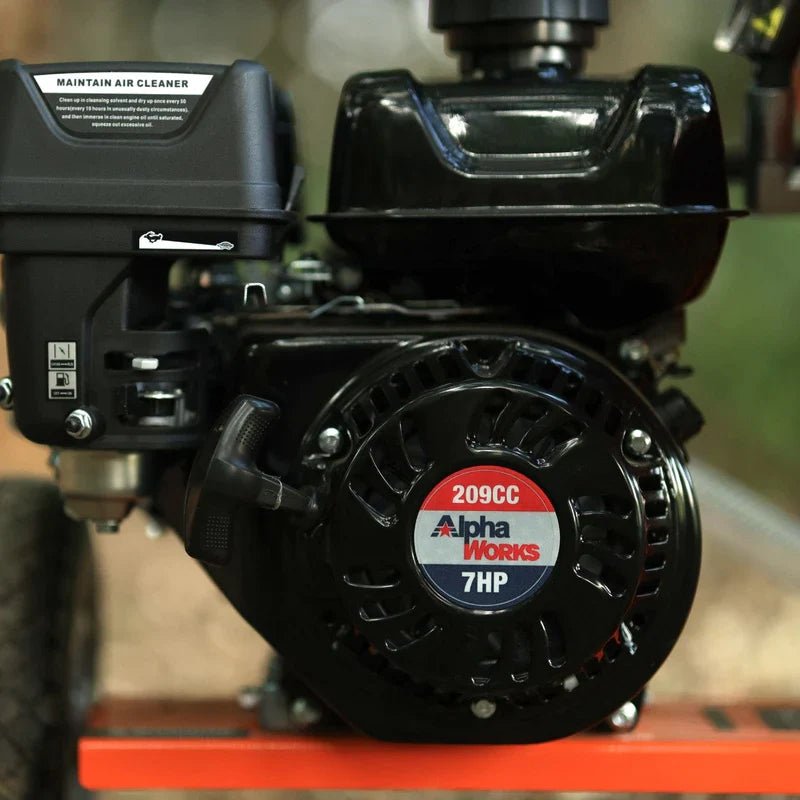

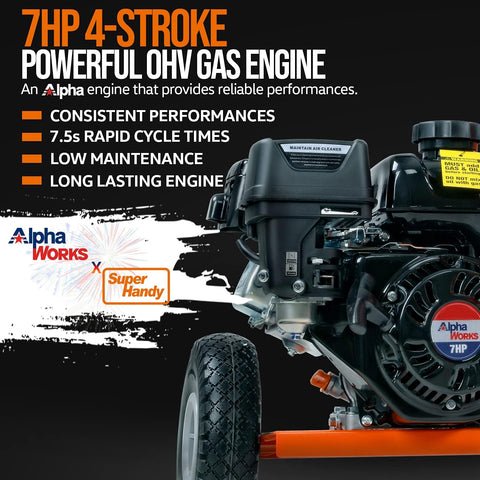

- EFFICIENT – Our 7HP Gas Engine provides a smooth linear power curve to help avoid clunky performance during operation. A constant splitting force allows the wedge to smoothly slice through your wood pile with confidence; Effortlessly complete large splitting jobs with only a 7.5-second cycle time reset in-between log splits
- PROPER USE – (POWER) unlike electric-powered splitters, gas-powered units produce greater consistent pounds per force square inch and are more versatile for portable applications due to lack of constraints of needing access to an electrical power source; It is recommended this splitter be used only outside with proper ventilation
- SAFETY – Always operate the Log Splitter with eye and hand protection, utilize the controls and shut off/on switch as needed; This log splitter is gas powered and does not require electricity to operate; (NOTE: HYDRAULIC FLUID NOT INCLUDED, AW32 Recommended)
- GUO077 User Manual
Detailed Specifications
Brand / Model:
SuperHandy GUO077
Operating Position:
Horizontal
Force / Tonnage:
20 Ton – 40,000 lbs
Fuel Type:
Gasoline – Non-ethanol rec.
Cycle Split Time:
7.5 Seconds (Approx)
Log Opening:
20 Inches
Wheels & Tires:
10″
Road Towable:
No
Engine / Recoil Start:
AlphaWorks 7HP (209cc)
Working Height:
18 Inches
Size assembled:
46.38″ long x 25.59″ wide x 34.05″ high
Hydraulic System:
1.6 gallon capacity(Fluid Not Included)
Safety Control Valve:
Detent, Auto Return
Pump:
11 Gallons Per Minute
Net Weight:
132 LBS
Hydraulic Cylinder:
3.5″ x 16″
Max Pressure:
3000 PSI
Warranty:
1 Year
