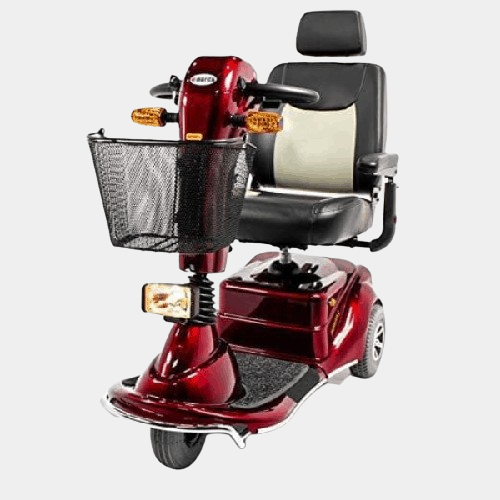

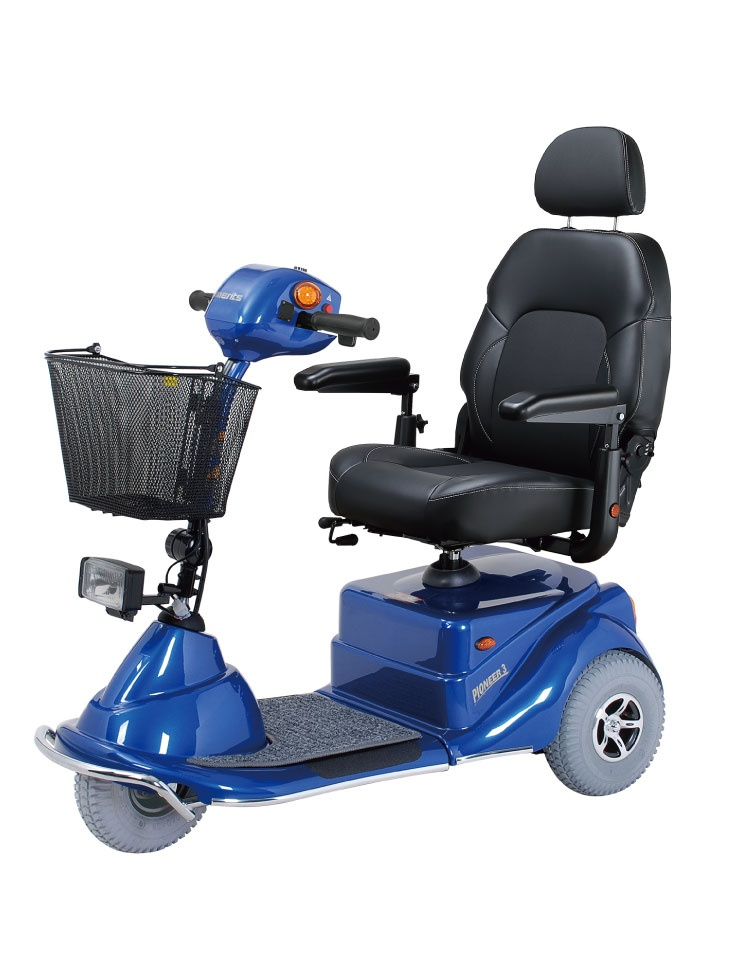

The Merits Pioneer 3 Wheel Electric Scooter offers smooth and efficient travel for those in need of mobility assistance. With its lightweight design and sturdy construction, it combines ease of use with reliability. Its powerful motor and long-lasting battery provide a comfortable and safe ride, making it an ideal choice for those seeking a dependable and convenient means of transportation.
Key Features:
- High-torque drivetrain provides increased power.
- One-piece frame supports up to 181 kg.

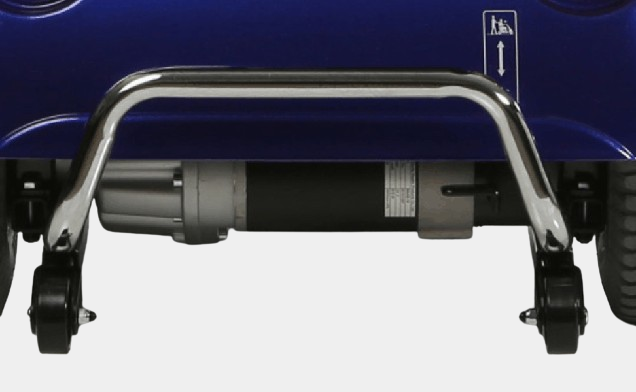

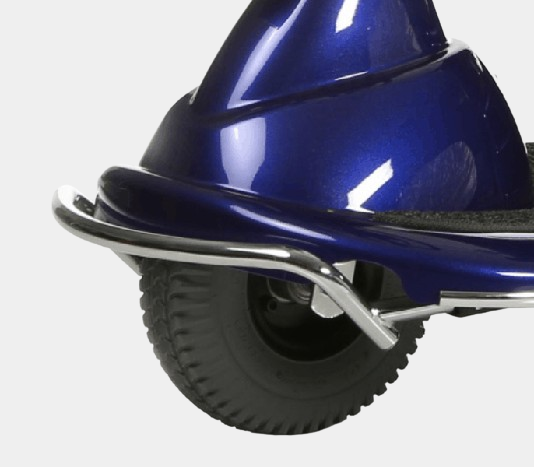

- Steel bumper protects shroud and serves as lift handle.
- Captain seat offers additional support.

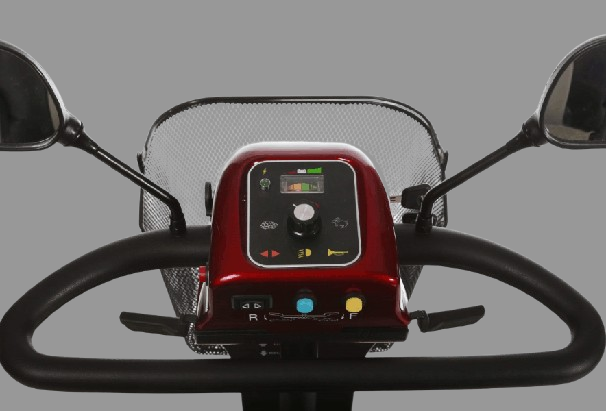

- Tiller angle adjustable.
- Swivel and sliding captain seat.

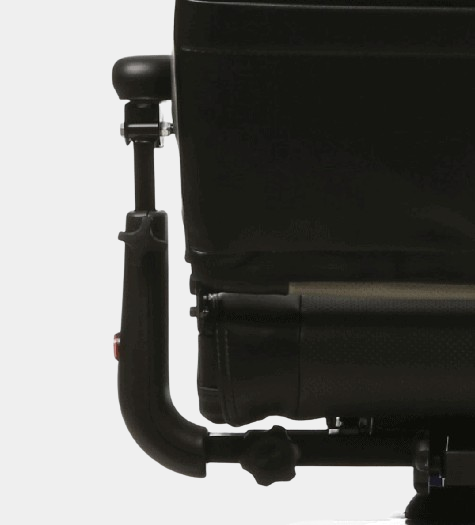

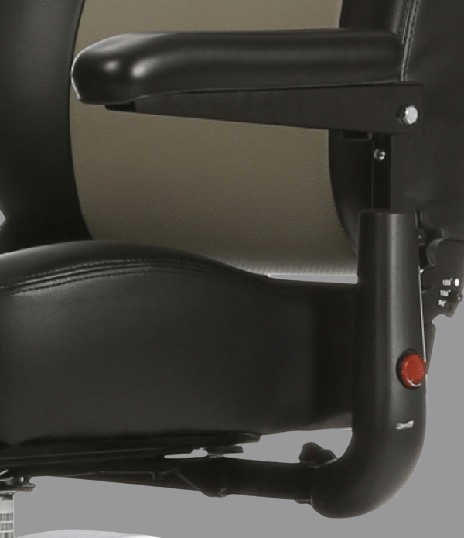

- Flip-up armrests are height, angle & seat width adjustable.
- Available in red or blue.
- Reflectors and non-slip mat included.
- Tight turning radius 99cm for indoors and outdoors use.
- Big shopping basket comes standard.
- Ground clearance 10cm.
Specifications:
| Dimensions (cm/in) |
Seat Width |
Seat Depth |
Seat Height from Ground |
Seat Height from Deck |
Seat Height |
Wheel Base |
Length Expanded |
Width |
Height Expanded |
|---|---|---|---|---|---|---|---|---|---|
| S131 (300 lbs) | 51 cm / 20″ | 46 cm / 18″ | 56-64 cm / 22″-25″ | 41-48 cm / 16″-19″ | 51 cm / 20″ | 84 cm / 33″ | Expanded Size:117 cm / 46″Folded Size:— | 58 cm / 23″ | Expanded Size:115 cm / 45″Folded Size:— |
|
S131 (400 lbs) |
51 cm / 20″ | 46 cm / 18″ | 56-64 cm / 22″-25″ | 41-48 cm / 16″-19″ | 51 cm / 20″ | 84 cm / 33″ | Expanded Size:117 cm / 46″Folded Size:— | 58 cm / 23″ | Expanded Size:115 cm / 45″Folded Size:— |
Key Details:
| Driving Range | 28 km / 18 mi. |
| Max Speed | 8 km/h , 5 mph |
| Battery Type | 12V / U1 x 2 pcs |
| Motor | DC 24V, 250W (Rating) / 915W (Max) |
| Max Climbing Angle | 12° |
| Weight Capacity | 181 kg / 400 lb. |
| Total Weight | 81 kg / 178 lb. |
| Turning Radius | 99 cm / 39″ |
| Ground Clearance | 10 cm / 4″ |
| Controller | Dynamic Rhino 2 120A |
| Charger | 4A off-board |
| Front wheel | 10″(260 x 85) Foam filled tire |

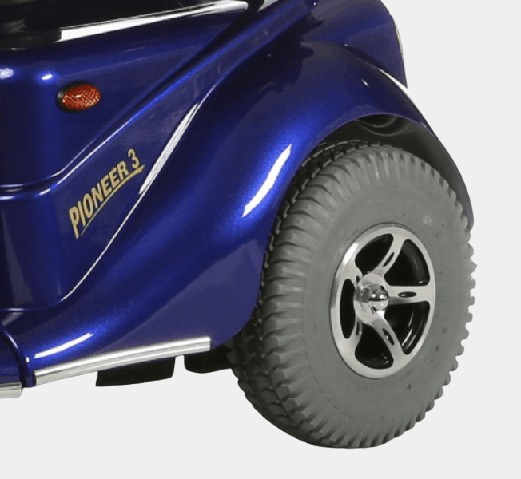

| Rear wheel | 10″ (260 x 85) Foam filled tire |
| Base | 39 kg / 86 lb |
| Battery | 12 kg / 26 lb |
| Seat | 18 kg / 40 lb |
| Brake | Intelligent, regenerative, electromagnetic brakes |
