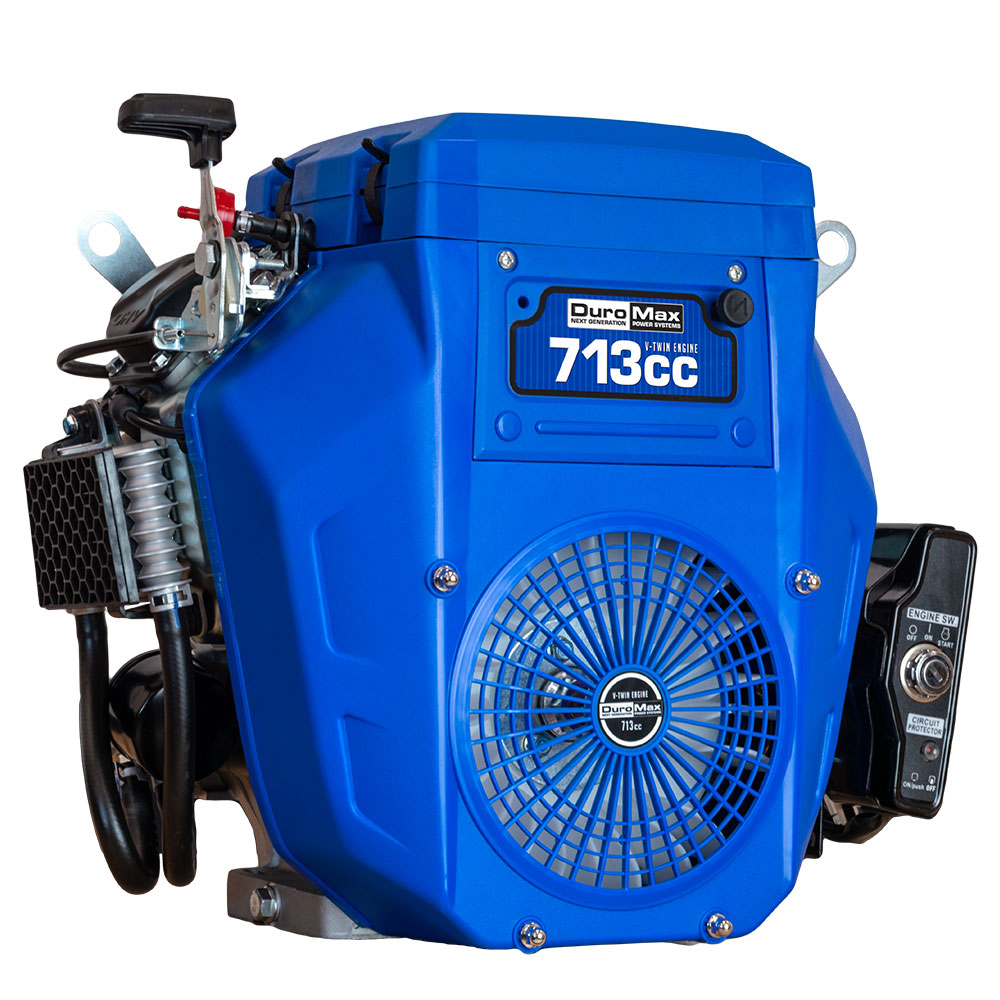

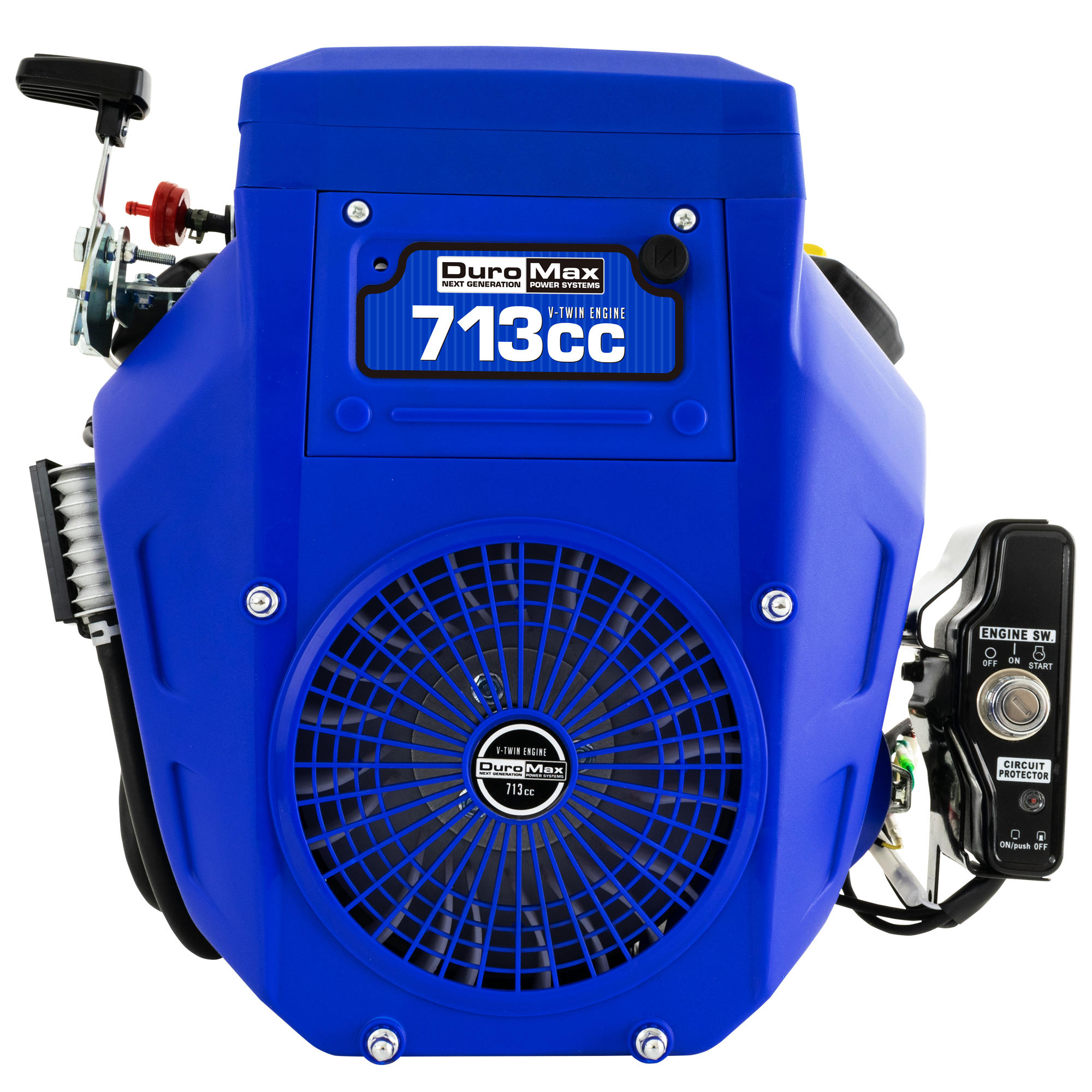

XP23HPE Specifications
| Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP23HPE |
| Engine Type | 4-Stroke |

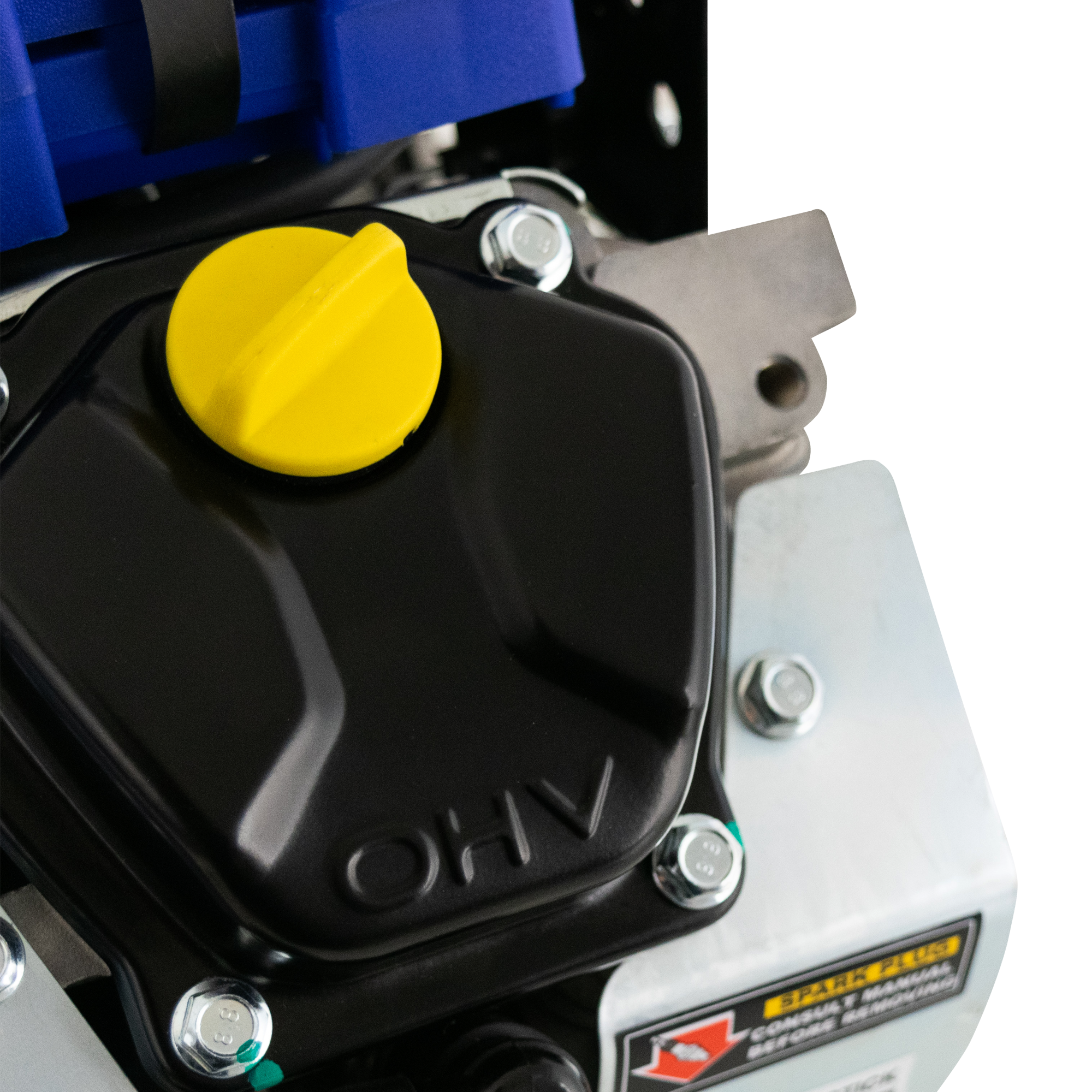

| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Displacement | 713cc |
| Bore | 80mm |
| Stroke | 71mm |
| Compression Ratio | 8.5:1 |
| Max Output | 4000 RPM |
| Max Torque | 31.72 ft-lbs (43 N.m.)@ 2500RPM |

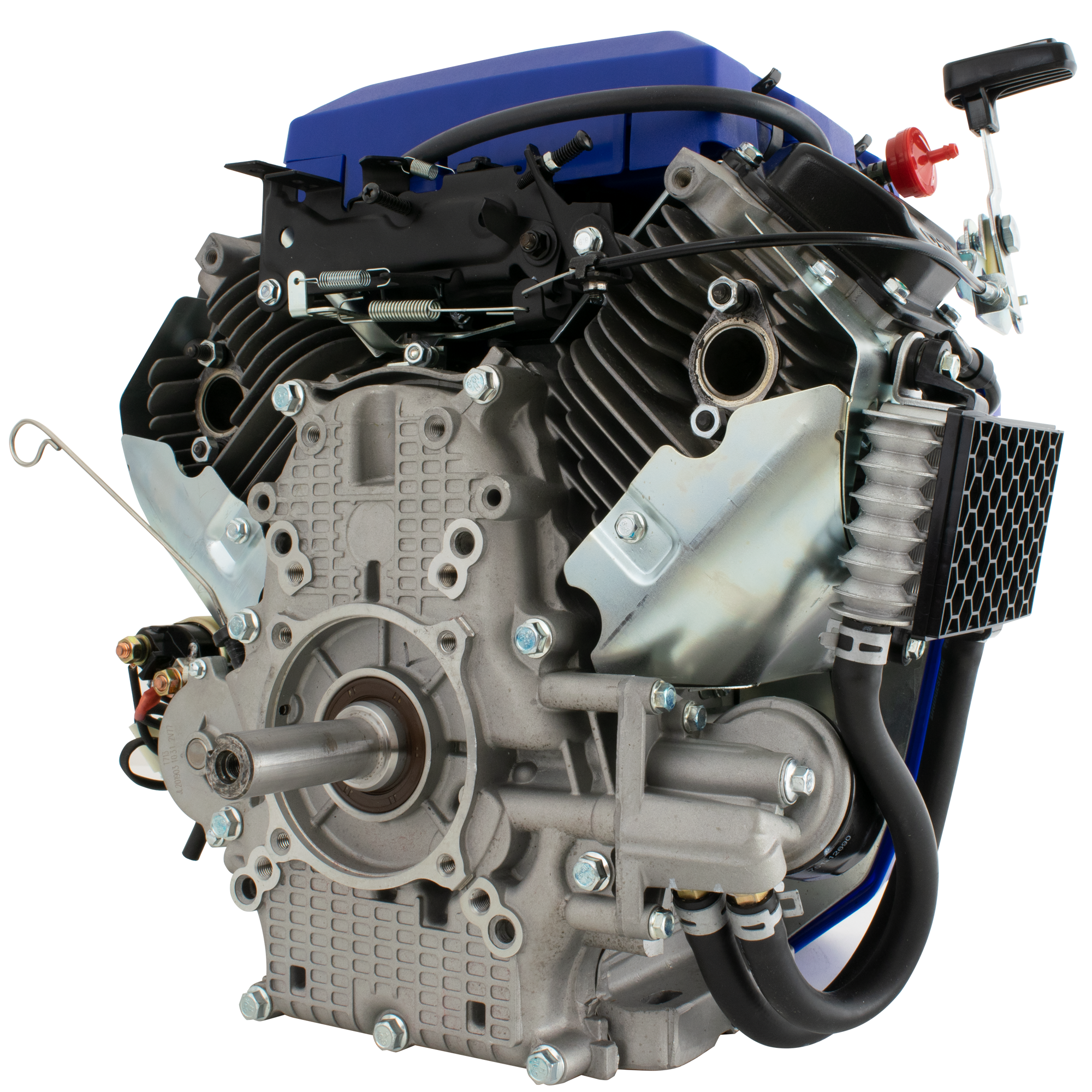

| Shaft Orientation | Horizontal |

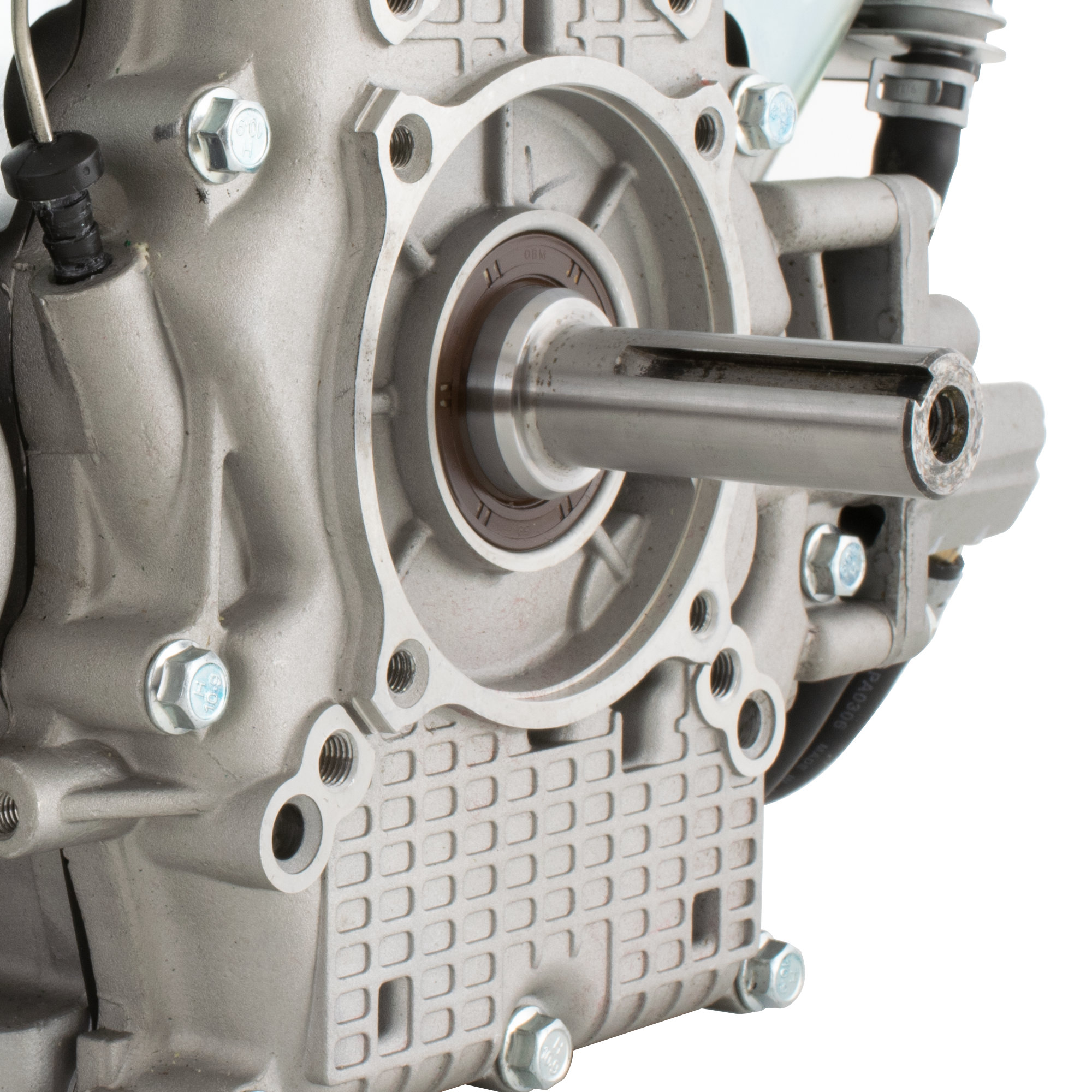

| Shaft Size | 1″ Diameter, 3.01″ Long, 1/4″ x 2″ Keyway |
| Shaft End | 3/8″ Size 24 UNF – 2B |
| Shaft Rotation | Counter Clockwise |

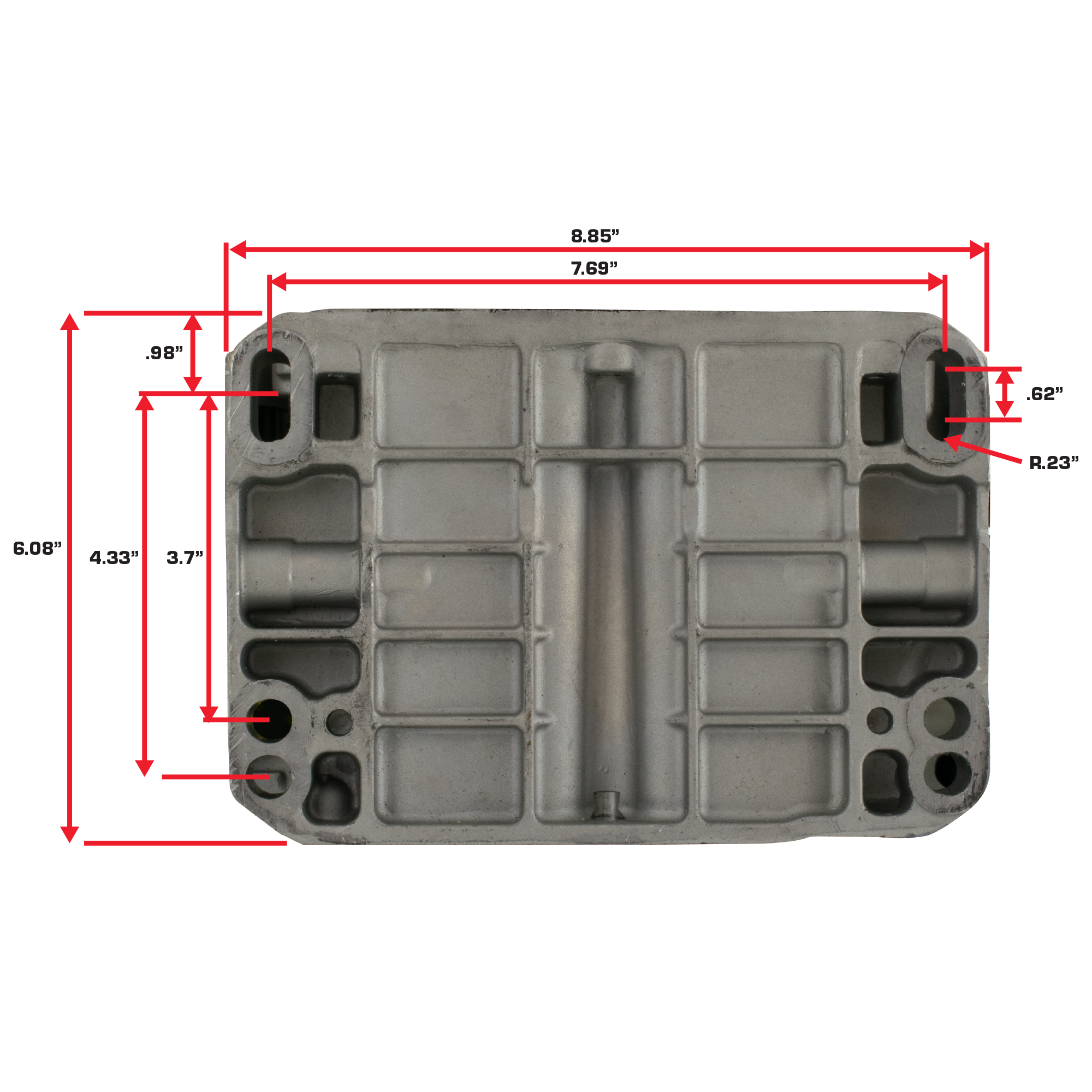

| Measurement from Center of Shaft to Base | 5.29″ |
| Fuel Types | Gasoline |
| Fuel Delivery System | Carburetor |
| Starting Type | Key Switch |

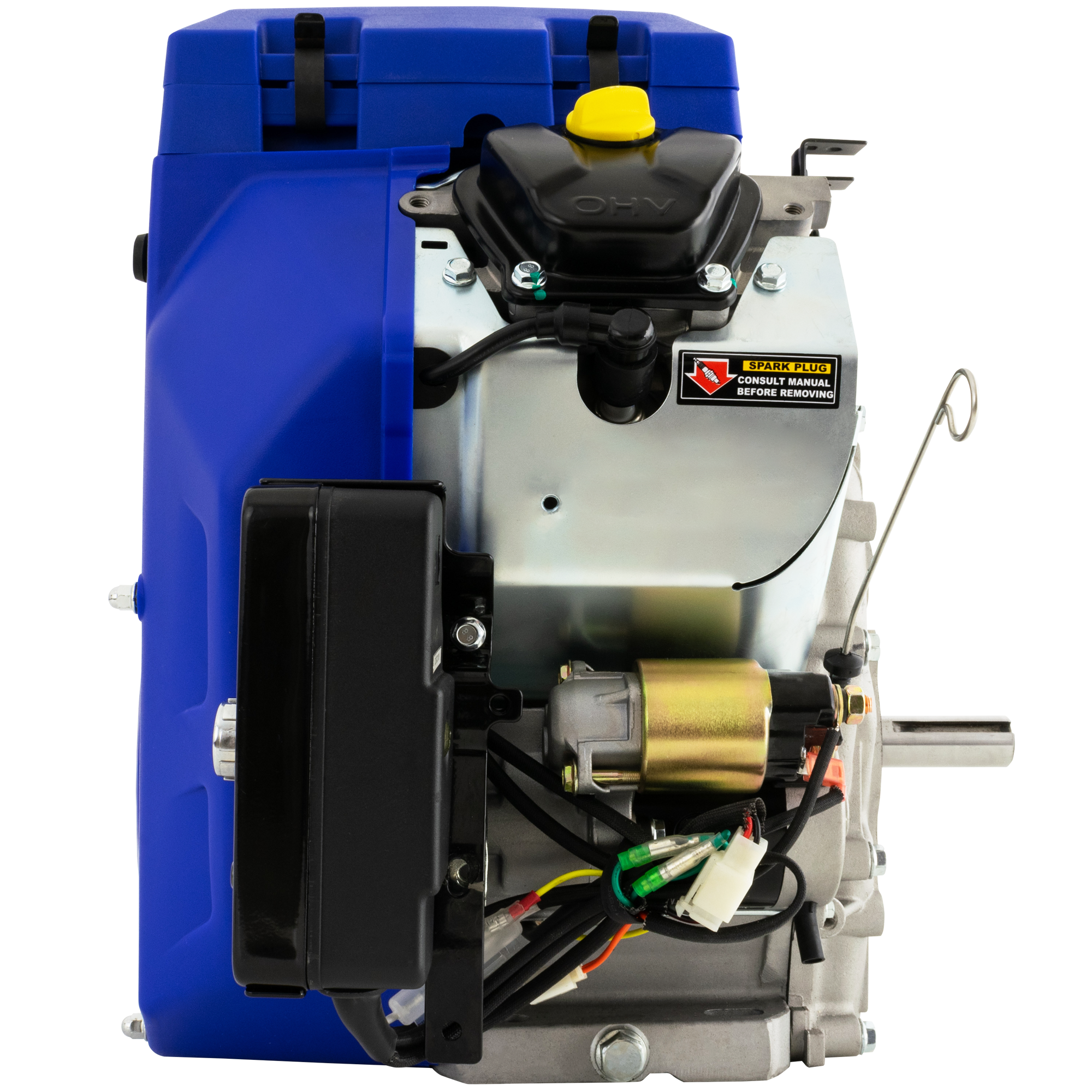

| Electric Start | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Needle Bearings |
| Oil Cooling Type | Pressure and Splash |
| Oil Capacity | 54.1 fluid oz. |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Product Dimensions | 19.3″-Long x 18.3″-Wide x 14″-High |
| Product Weight | 103.6-lbs |
| UPC | 811640016067 |
| Warranty | 3 Year |
| EPA Certified | Yes |
| CARB Certified | No |
| 50 State Emissions | No |
| What’s in the Box? | DuroMax XP23HPE Engine, and Owner’s Manual |
| Package Dimensions | 21.5″L x 21.1″W x 19.1″H |
